Copyright Notice

Copyright (C) Martin Juul (2020). All Rights Reserved.

Revision

Version	Date	Author
1.0	16/11-2020	Martin Juul

Abstract

This document describes the application CourseWire, a web application meant as an aid in advertising educations. Initially built to serve this purpose at Syddansk Erhversskole Odense-Vejle.

The public facing user interfaces are a Single Page Application (SPA), which is the "public" part of the app. The other user interface is the administration panel.

All subjects in the administration panel (courses, educations, etc.) is available at the included HTTP API.

Terminology

The key words "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in this document are to be interpreted as described in rfc2119 (opens new window)

The word user describes either an unknown entity or a user with administrative privileges, unless other is specified.

Entity Diagram

Class diagram

API

The HTTP API is available at yourdomain.tld/api exchanging messages encoded with JSON.

Courses

Endpoint yourdomain.tld/api/courses

{
  "data": [
    {
      "title": "string",
      "course_no": "string",
      "overview": "string|null",
      "about": "string|null",
      "duration": "string|null"
    }
  ]
}

Show Course

Endpoint yourdomain.tld/api/courses/:slug

{
  "data": {
    "title": "string",
    "course_no": "string",
    "overview": "string|null",
    "about": "string|null",
    "duration": "string|null"
  }
}

Educations

Endpoint yourdomain.tld/api/educations

{
  "data": [
    {
        "title": "string",
        "short_name": "string",
        "slug": "string",
        "about": "string|null",
        "blur_hash": "string|null",
        "image": "string|null",
        "created": "datetimetz",
        "updated": "datetimetz"
    }
  ]
}

Show Education

Endpoint yourdomain.tld/api/educations/type/:slug

{
  "data": {
    "title": "string",
    "short_name": "string",
    "slug": "string",
    "about": "string|null",
    "blur_hash": "string|null",
    "image": "string|null",
    "created": "datetimetz",
    "updated": "datetimetz"
  }
}

Show Education Version

Endpoint yourdomain.tld/api/educations/:educationTypeSlug

{
  "data": {
    "parent": "string|omitted",
    "slug": "string",
    "version": "string"
  }
}

Show Education Versions

Query Param

Parameter	Value	Example
version	string	9.1

{
    "data": [
      {
        "parent": "string|omitted",
        "slug": "string",
        "version": "string"
      }
    ]
}

Student Types

Endpoint yourdomain.tld/api/student-types

{
  "data": [
    {
        "title": "string",
        "slug": "string",
        "overview": "string|null",
        "description": "string|null"
    }
  ]
}

Semesters

Endpoint yourdomain.tld/api/semesters/{educationSlug}/{studentTypeSlug}

{
  "data": {
    "semester": "int",
    "courses": [
      {
        "title": "string",
        "course_no": "string",
        "overview": "string|null",
        "about": "string|null",
        "duration": "int"
      }
    ]
  }
}

User interface

The following sections describe the user interfaces available to the user.

Design System

Palette

Name	SASS Variable	Hex
Background	$white	#ffffff
Primary	$blue	#006c80
Secondary	$cyan	#4dd0e1
Accent	$orange	#f6831e
Error	$red	#f6831e
Warning	$yellow	#ffeb3b
Info	$blue-light	#64b5f6
Success	$green	#4caf50

Fonts

Serif font is the Roboto (opens new window) by Google.

The icons chosen is the Material Design Icons (opens new window).

Common Elements

These elements is presented on all public pages.

Header

+----------+--------+--------+---------------+--------------------------------------------------------+
|          |        |        |               |                                                        |
|  LOGO    |  Hjem  |   Fag  | Uddannelserne |                                                        |
|          |        |        |               |                                                        |
+----------+--------+--------+---------------+--------------------------------------------------------+

Footer

+-------------------------------------------------------------------------------------+
|       XX  XX  XX  XX                                                                |
|       XX  XX  XX  XX                                        Copyright Notice        |
+-------------------------------------------------------------------------------------+

Where each block of X's represents external links to branding pages (facebook, youtube, linkedin, website).

Homepage

The homepage features a stepper where a user can select an education, student type and optionally an education version - to see the semesters for the education.

Course Overview

A page with a table where a user can browse courses

Course No	Title
no	course title

Course Display

+----------------------------------+
|                                  |
|                                  |
|     title            course_no   |
|                                  |
|                                  |
|     overview                     |
|                                  |
|                                  |
|                                  |
|     description                  |
|                                  |
|                                  |
+----------------------------------+

Structured Data

To ensure the site is indexed well. The sdt definition for courses is added. An example is shown below:

{
  "@context": "https://schema.org",
  "@type": "Course",
  "name": "Computerteknologi",
  "description": "Kendskab til benyttelse af og forståelse for hvad brugbar dokumentation er\rpå arbejdspladsen, vil give eleven en fordel i faget.",
  "courseCode": "6225",
  "image": "https://coursewire.test/asset/hero/Q29tcHV0ZXJ0ZWtub2xvZ2k=",
  "teaches" :"I dette fag arbejder eleverne med opsætning af et system (server med raid\ropsætning samt server-software.) Under arbejdet med opsætning fører eleverne\rdokumentation for arbejdet (UML orienteret.) Eleverne skal designe\rog benytte: User Story, arbejdslog, fejlformular, konfigurationsdokumentation,\rog Accept test. Faget omhandler i dette henseende træning i forståelse\rog benyttelse af brugbar dokumentation i arbejdssituationen.",
  "provider": {
    "@type": "EducationalOrganization",
    "name": "Syddansk Erhvervsskole",
    "alternateName": "SDE",
    "url":"https://www.sde.dk",
    "email":"sde@sde.dk",
    "telephone":"+4570109900",
    "address": {
      "@type":"PostalAddress",
      "streetAddress":"Munkebjergvej 130",
      "addressLocality":"Odense",
      "postalCode":"5230",
      "addressCountry":"DK"
    }
  }
}

Here's a sample from what it might look like on Google Search

Educations Overview

Educations Display

Structured Data

{
  "@context": "https://schema.org",
  "@type": "WorkBasedProgram",
  "name": "IT-Supporter",
  "description": "Sørg for den bedste IT-faglige hjælp til maskiner – og menneskerDer findes stort set ikke virksomheder, der ikke er afhængige af it på den ene eller anden måde. Og det betyder samtidig, at stort set alle virksomheder har behov for nogle, der kan sikre, at systemerne virker optimalt – og en, der kan hjælpe, hvis de ikke gør.Som it-supporter skal du ikke alene kunne finde og fikse it-relaterede problemer - du skal også kunne forklare og få folk til at forstå problemet. Eller i det mindste for dem til ikke at lave den samme fejl igen – eller i så fald kunne løse problemet selv.På uddannelsen opnår du en bred viden om it, der gør dig i stand til at finde fejl og se sammenhænge mellem forskellige systemer. Du bliver også klædt på til at foretage rutinetjek i it-afdelingen.Desuden lærer du at opbygge og vedligeholde samt optimere netværksløsninger.Som uddannet it-supporter vil dine primære opgaver være at:drifte og vedligeholdelse af it-systemetfinde og fikse it-relaterede fejl og brugerfejlinstallere og konfigurere computere, programmer og øvrige it-installationervejlede brugerne og sikre hjælp-til-selvhjælptilslutte monitorer, printere, routere, servere mv.",
  "image": "https://coursewire.test/asset/hero/SVQtU3VwcG9ydGVy",
  "programType": "apprenticeship",
  "occupationalCategory": "3512",
  "timeToComplete": {
    "@type": "Duration",
    "timeToComplete": "P2Y6M"
  },
  "dayOfWeek": "Monday,Tuesday,Wednesday,Thursday,Friday",
  "programPrerequisites": {
    "@type": "EducationalOccupationalCredential",
    "credentialCategory": "HighSchool"
  },
  "occupationalCredentialAwarded": {
    "@type": "EducationalOccupationalCredential",
    "credentialCategory": "degree"
  },
  "trainingSalary": {
    "@type": "MonetaryAmountDistribution",
    "currency": "DKK",
    "median": "72.5"
  },
  "salaryUponCompletion": {
    "@type": "MonetaryAmountDistribution",
    "currency": "DKK",
    "median": "176"
  },
  "provider": {
    "@type": "EducationalOrganization",
    "name": "Syddansk Erhvervsskole",
    "alternateName": "SDE",
    "url": "https://www.sde.dk",
    "email": "sde@sde.dk",
    "telephone": "+4570109900",
    "address": {
      "@type": "PostalAddress",
      "streetAddress": "Munkebjergvej 130",
      "addressLocality": "Odense",
      "postalCode": "5230",
      "addressCountry": "DK"
    }
  }
}

Administration Dashboard

The dashboard provides the functionality to manage the actual resources in the application.

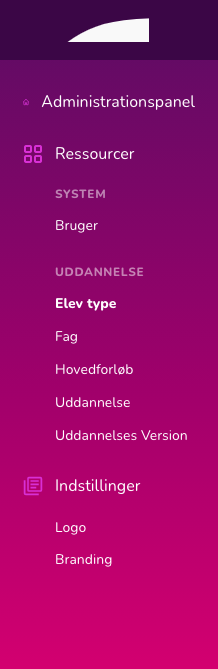

To the left of the view, the sidebar is shown:

The following sections displays the resource features. I've chosen to show all types on actions on Student Type, and omitted them from the other resource types - as the functionality behaves mostly the same.

Student Type

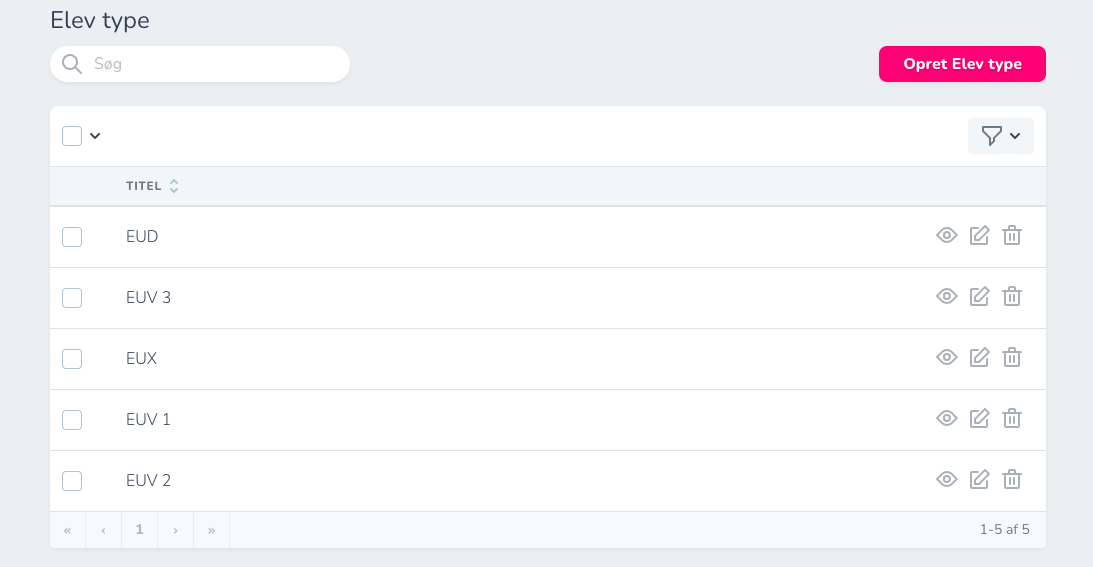

Index

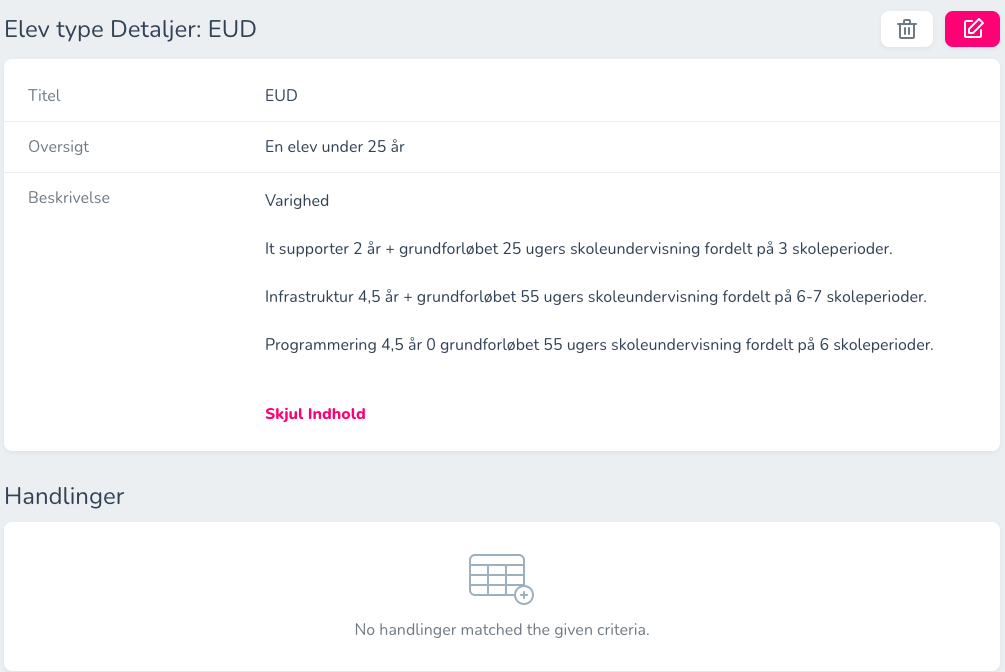

Detail

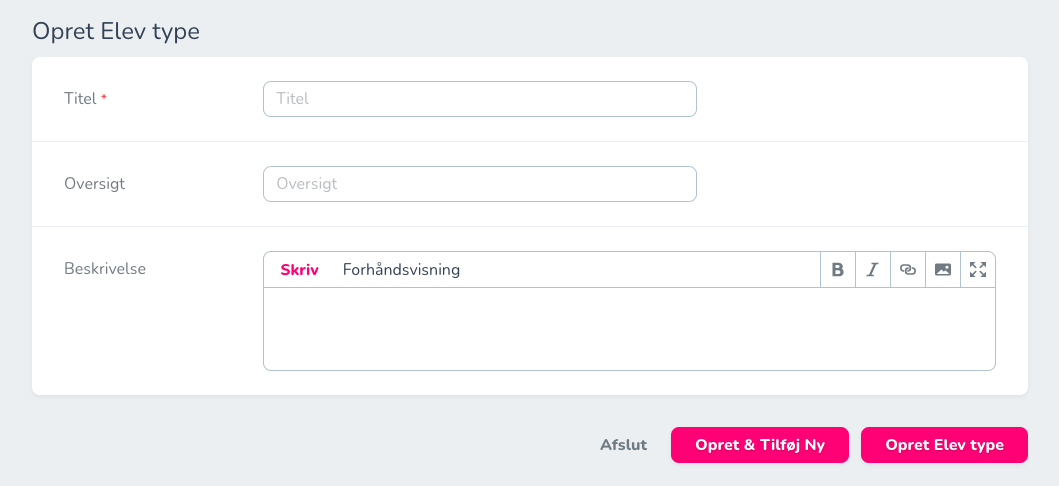

Create

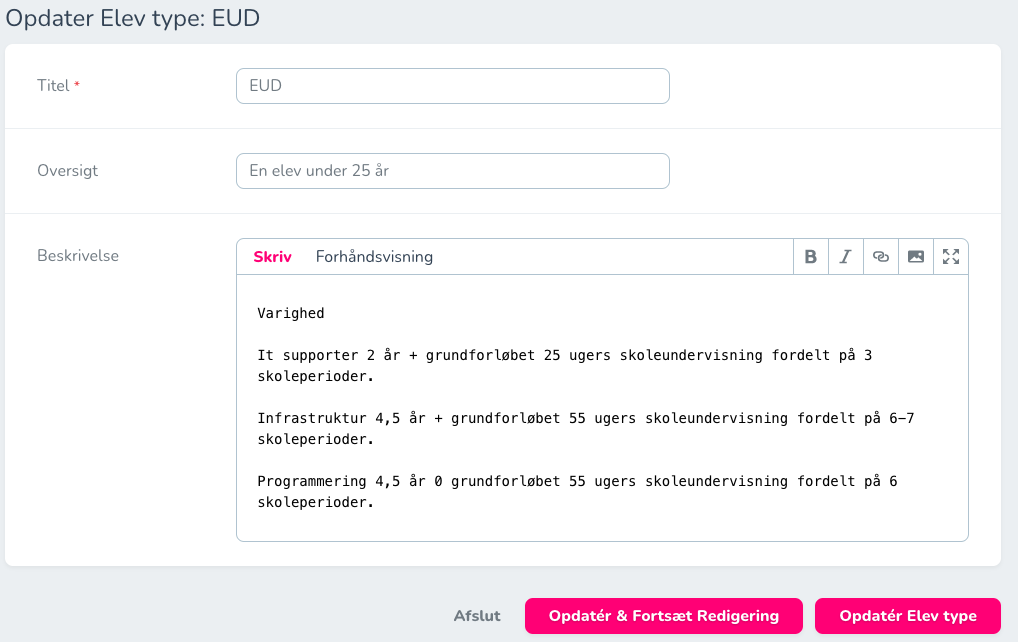

Update

Course

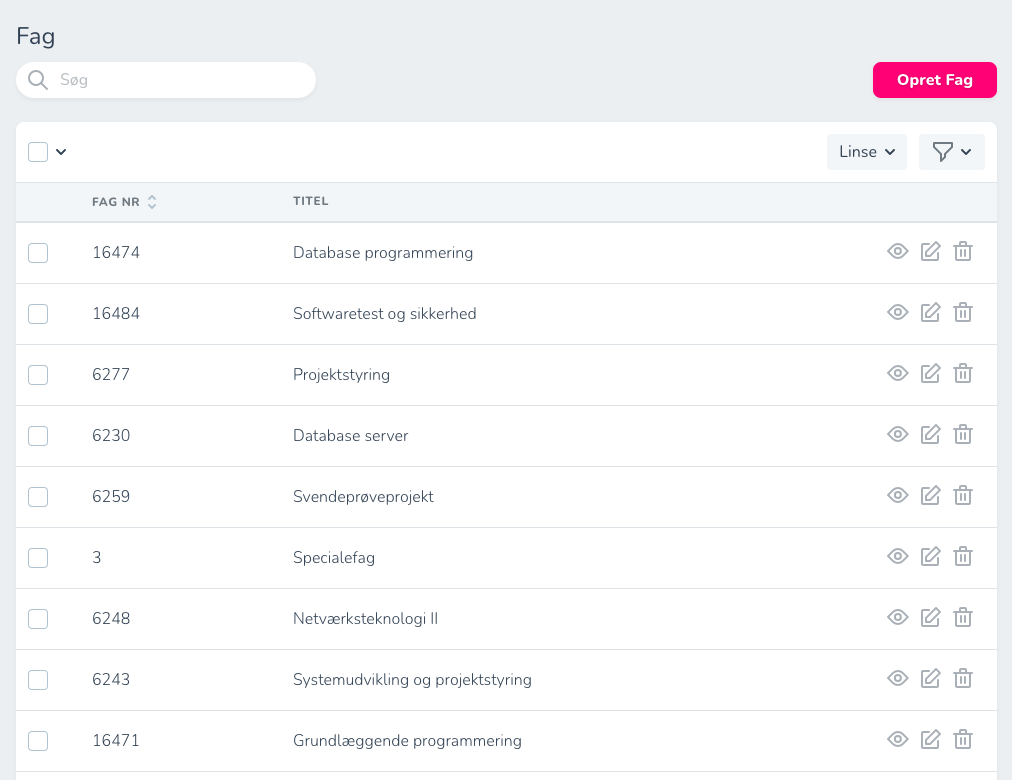

Index

Semester

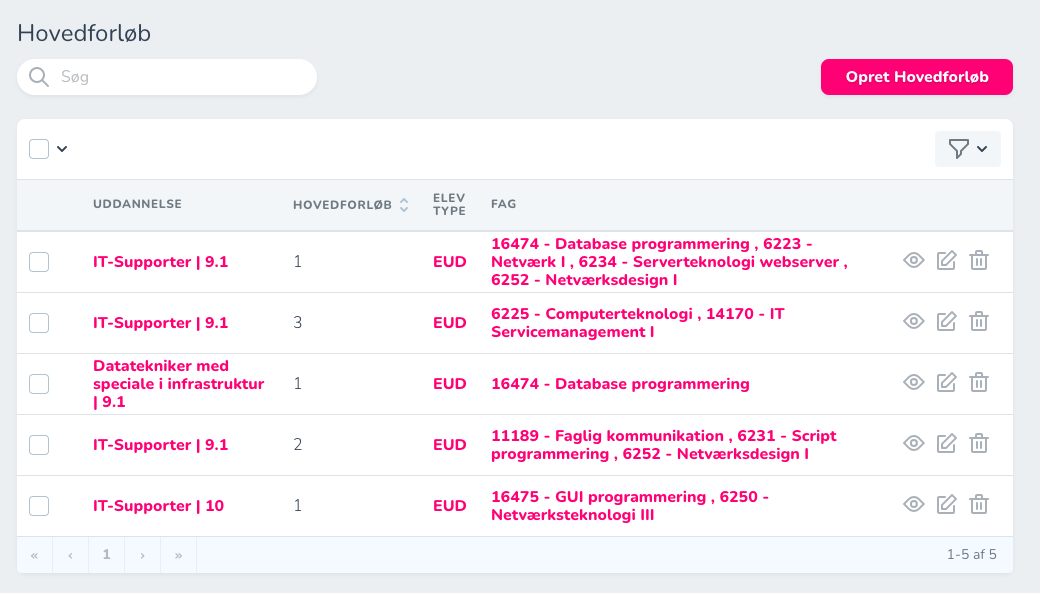

Index

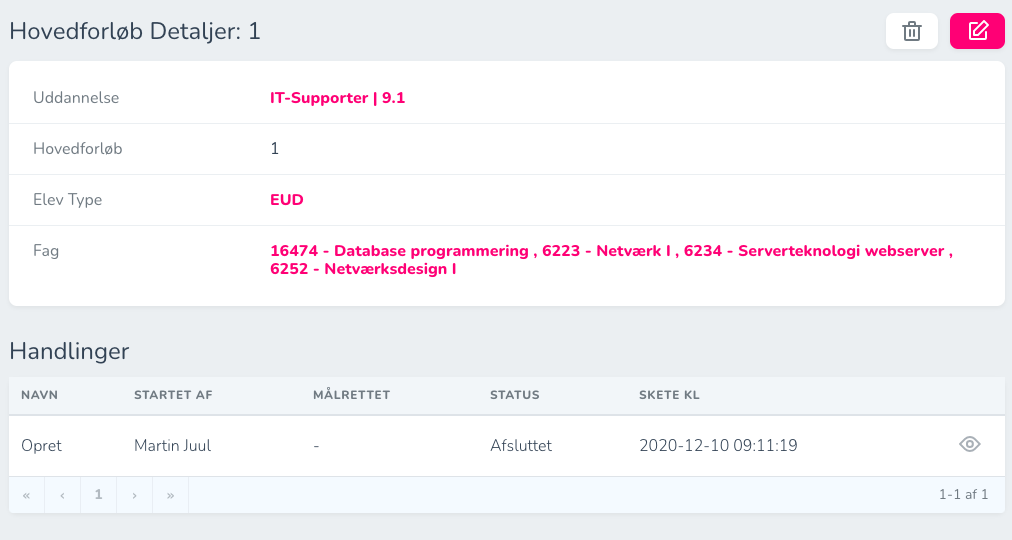

Detail

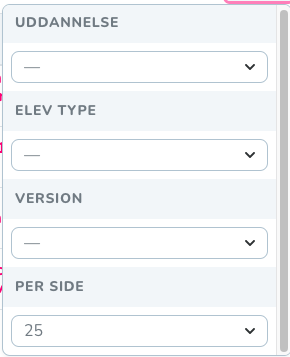

Filters

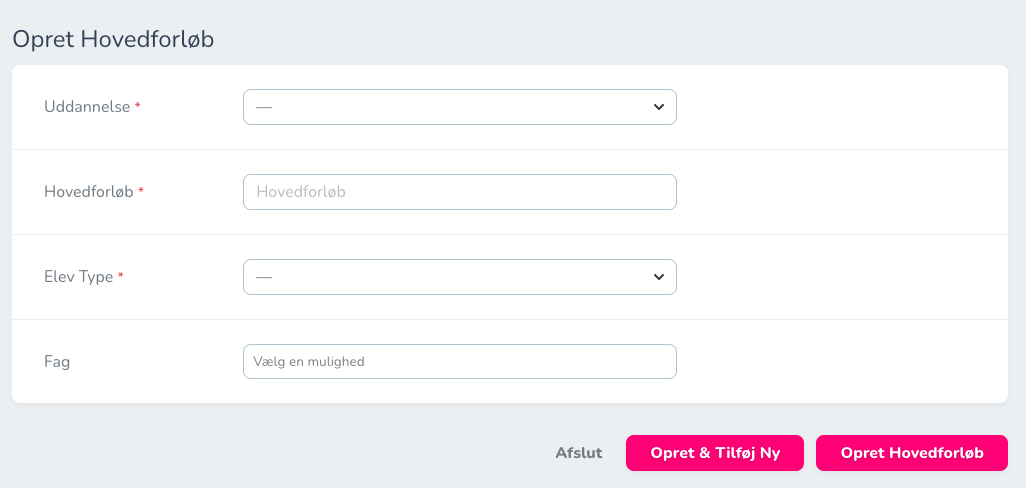

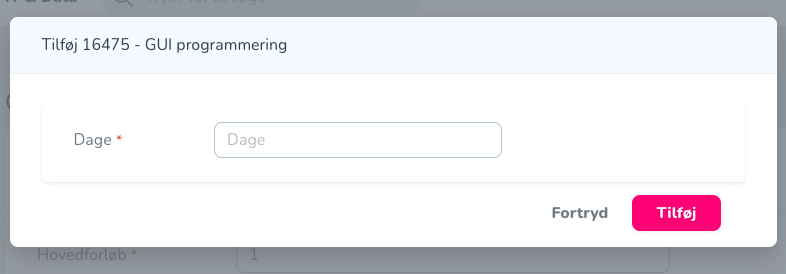

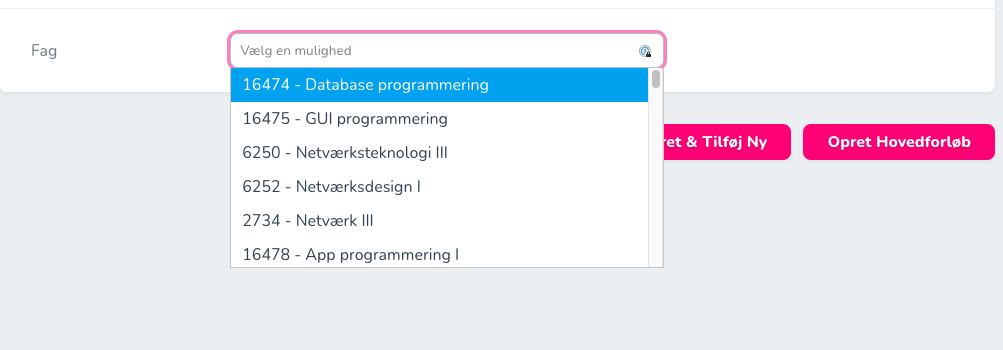

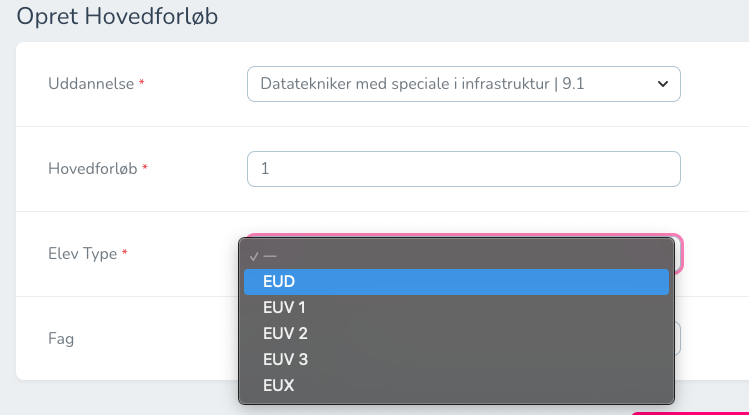

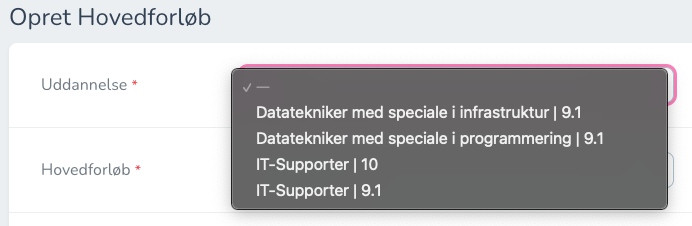

Create

Education

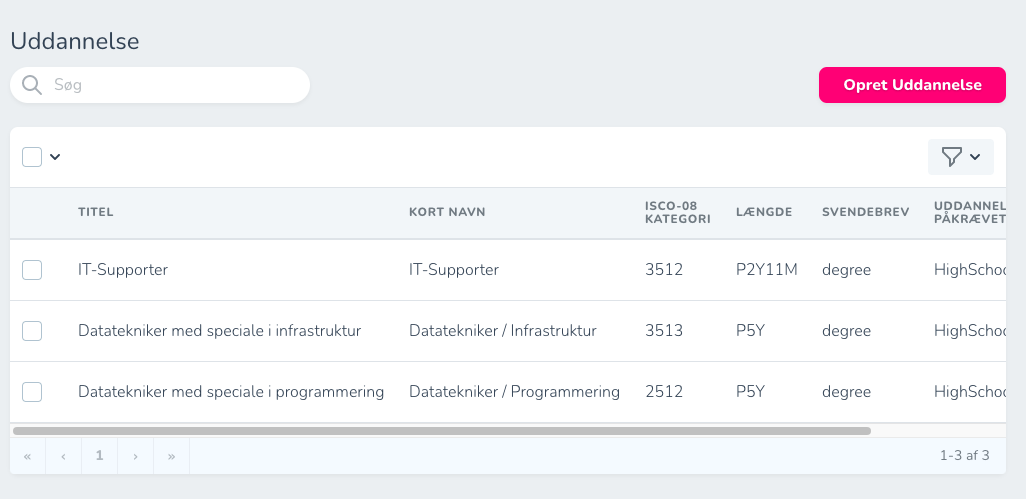

Index

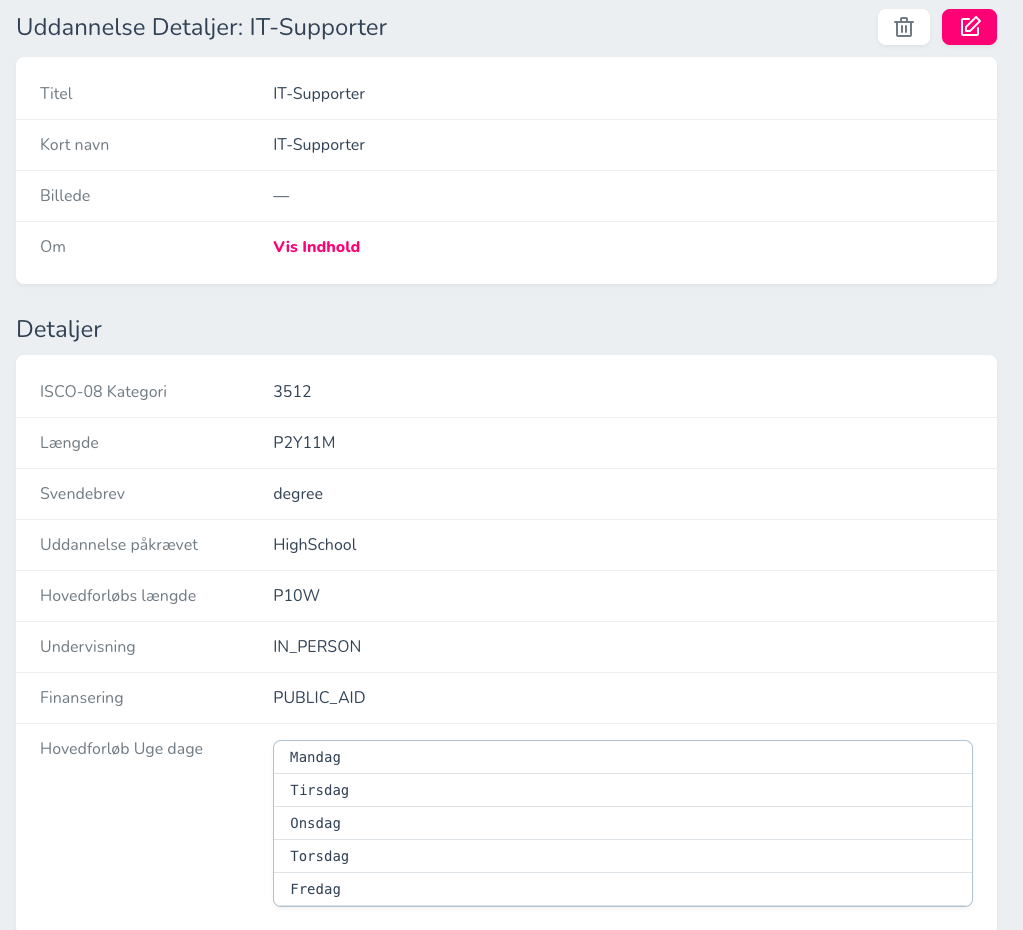

Detail

Education Version

Index

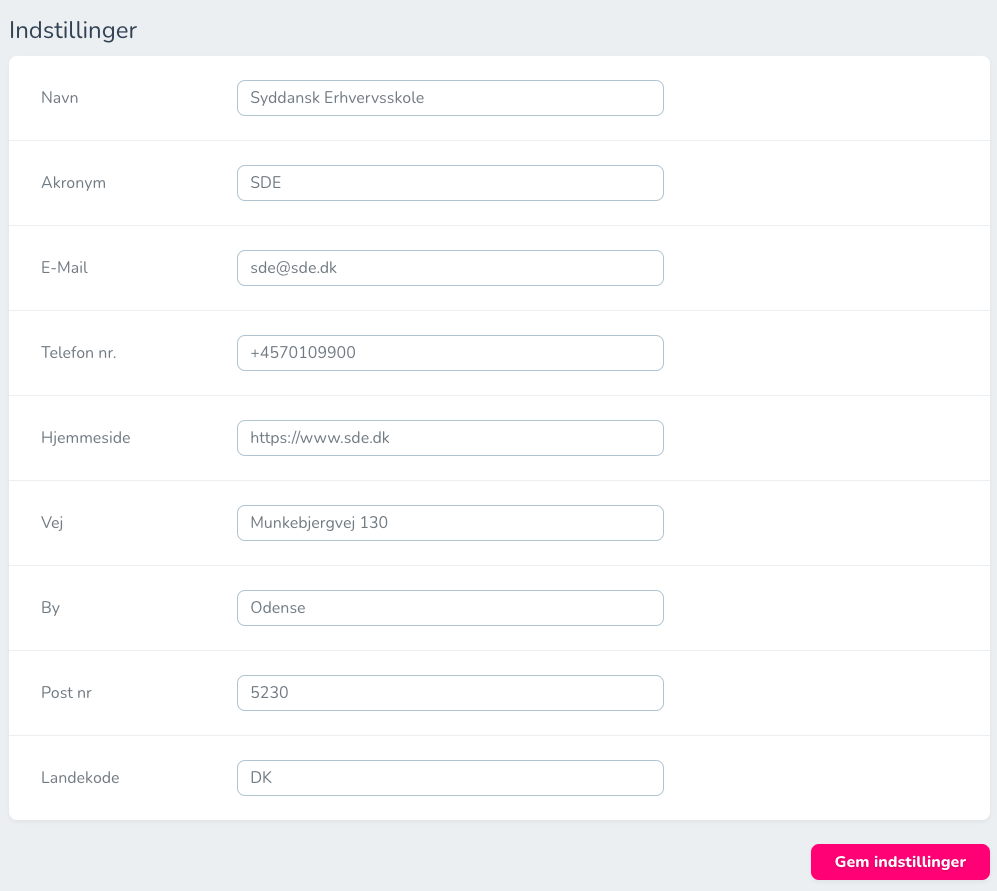

Settings

Security Measures

Several technologies and web standards are enforced in the application.

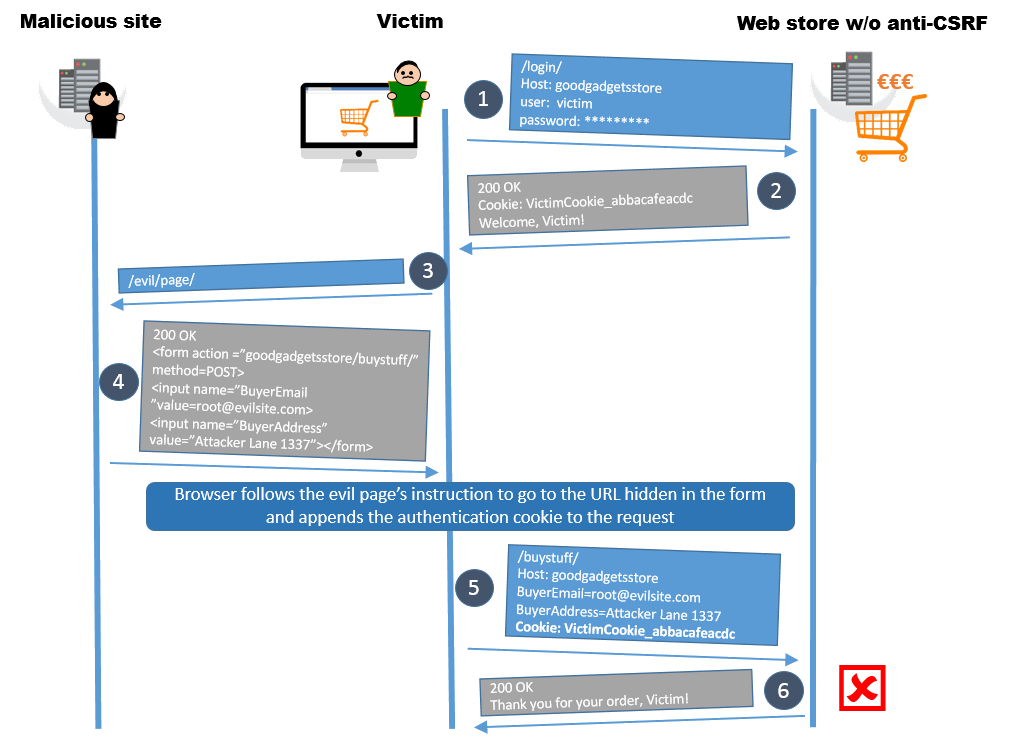

Cross Site Request Forgery (CSRF)

CSRF attacks happen due to maliciously crafted HTTP POST requests. Thereby allowing cookies to be stolen.

Browsers have builtin security to protect against these attacks. But are on case-by-case.

To protect against these attacks. A token is generated with each request. The token is stored in the html body of the page. On each form request, this token is checked and validated.

This prevents these attacks. As the attacker has no way of knowing the value of the token, and is not able to inject it in a user context.

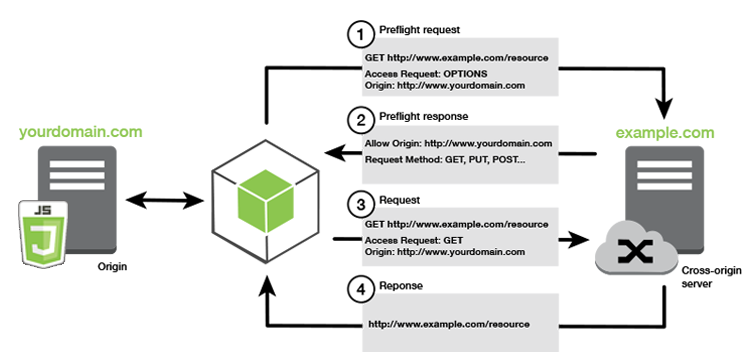

Cross Origin Resource Sharing (CORS)

Password Encryption

Argon2 is modern ASIC-resistant and GPU-resistant secure key derivation function. It has better password cracking resistance (when configured correctly) than PBKDF2, Bcrypt and Scrypt (for similar configuration parameters for CPU and RAM usage).

The Internet Engineering Task Force (IETF) recommends using Argon2id for new applications. As described in draft-irtf-cfrg-argon2-12 (opens new window)

TLS

All versions of SSL and TLS version 1.0 and 1.1 are NOT to be used, when hosting the app.

This is due to these versions have been cracked. At minimum TLS 1.2 should be used, and TLS 1.3 once stable.

GlobalSign Disable TLS and All SSL versions (opens new window)

PacketLabs TLS 1.1 No Longer Secure (opens new window)

Output escaping

To prevent mangling input data, a subset of html is allowed. This is escaped during the application output stage. This way the users are protected from malicious script injections (XSS).

Removing these during input, would be a bad decision. As the HTML standard evolves, new ways to inject javascript naturally happens. And it would encourage a bad practice. Because no matter what, we cannot entirely trust any user generated data.

Not encforcing escaping during output, would potentially expose users to risk. As in that case, the output would be "trusted".

Test Suite

Feature Testing

These tests features like the REST api. Expectations are tested against actual responses.

Unit Testing

Here we test functionality of e.g. services.

Browser Testing

Laravel Dusk (opens new window) is a testing utility built on top of ChromeDriver (opens new window) and Selenium (opens new window)

It allows defining tests in code, that nullifies any reason to spend time on manual testing. Instead we write tests for what we would confirm visually.

The HomePage test below is a good example on how easy they are to write.

<?php

namespace Tests\Browser;

use Laravel\Dusk\Browser;
use Tests\Browser\Pages\HomePage;
use Tests\DuskTestCase;

class HomePageTest extends DuskTestCase
{
    /**
     * A Dusk test example.
     *
     * @return void
     * @throws \Throwable
     */
    public function testBasicElements(): void
    {
        $this->browse(function (Browser $browser) {
            $browser->visit(new HomePage)
                ->assertSee('Bliv en af danmarks kommende talenter indenfor IT.')
                ->assertSee('IT-SUPPORTER')
                ->assertSee('DATATEKNIKER / PROGRAMMERING')
                ->assertSee('DATATEKNIKER / INFRASTRUKTUR');
        });
    }

    /**
     * Test education stepper
     *
     * @throws \Throwable
     */
    public function testStepper(): void
    {
        $this->browse(function (Browser $browser) {
            $browser->visit(new HomePage)
                ->waitForText('IT-SUPPORTER')
                ->click('@it-supporter')
                ->waitForText('EUD')
                ->click('@eud')
                ->waitForText('Hovedforløb')
                ->assertSee('Hovedforløb 1')
                ->assertSee('Objektorienteret programmering')
                ->assertSee('Serverteknologi webserver')
                ->assertSee('Linux rettet mod server og embedded')
                ->assertSee('Script programmering')
                ->assertSee('Hovedforløb 2')
                ->assertSee('App programmering II')
                ->assertSee('Serverteknologi Linux')
                ->assertSee('IT Service-Management II');
        });
    }
}

Demo

cw-dev.endoftheweb.pw (opens new window)
